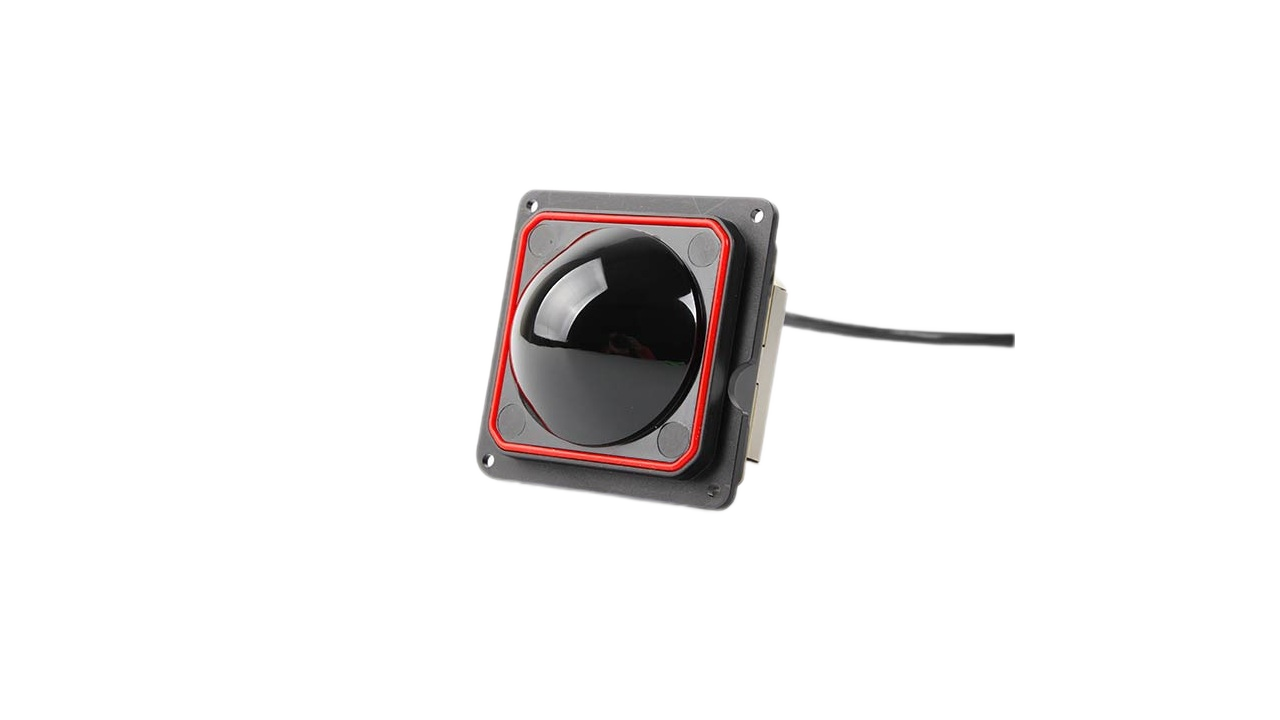

The WTR10 is a 60GHz radar fluid level measuring sensor, developed by Nanoradar, using FMCW technology with a measuring distance of 0.1 ~ 30 meters and a measuring accuracy of 3mm. The WTR10 uses a lens antenna design with a beam Angle of (6°x6°) which can effectively filter the noise interference in the application environment, and the measurement results are more accurate and stable. The product has low-power consumption, small size, light weight and is not affected by environmental factors such as temperature, pressure, sediment, dust, pollutants, floating objects on the surface and in the air.
- Application for water and chemical liquid processing.
- Transmission frequency is 60GHz.
- Beam width/height of 6°x6°.
- Detection distance up to 30 meters.
- Communication interface with RS485.
- Dimension are 62x62x42mm (LxWxH).
